Solenoid Valves

Plastic And Metal Versions


Saleseveryvalve.com

Always State Required VOLTAGE ( AC / DC )                   'N.C' = Normally closed             'N.O' = Normally open

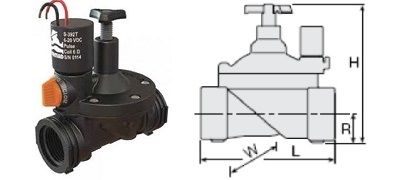

Plastic Valve 'K' Type (Servo) N. Closed

Plastic Valve PPS Direct Type BSPm (N.Close) (D132, D332, D144, D344)

Cheap Valve for Clean Water Only N. Closed.

 Chemical Direct Acting Type - ½" (¼" 2 & 3 way also)

Application

Suitable for water and irrigation Not good for other liquids at all.

Applications

Suitable for aggressive chemicals based on reliable simple design.

Specification

Pressure        : 0.3 min - 8.0 max Bars.
Voltage         : 12v DC, 24v AC,  240v AC,110v AC.
Body             : FR Nylon 66. SS Plunger.
Terminations: Flying Leads 30cm long.
Ends             : BSP female threaded.
Diaphragm   : Natural Rubber.
Temperature: 30°C maximum.

Flow control on central screw + M.Ove Black Nylon / PVC composite body.

Specification

Pressure        : 0 - 1.6 Bar & 65°C.
Voltages        : 12v DC, 24v AC,  240v AC,110v AC.
Current          : 20v A Approx. 36v A Inrush.
Terminations : IP65 Plug type MPM182.
Ends              : BSP male threaded..
Seals             : FPM Standard.
Body              : D132 - D332 PPS (Polyphenylene Sulphide)

                      : D144 - D344 PEI (Polyetherimide)

                      : (Weight 420 grams).

K Type

Plasctic Solenoid Valve

D 132 2 WAY

D 132 2 WAY
Data Sheet

D 332 3 WAY

D 332 3 WAY
Data Sheet
Size 3/4" 1" 1.1/2" 2"
Length (mm) 110 110 160 170
H (mm) 114 114 181 191
R ( mm ) 22 22 35 38
W ( mm ) 78 78 125 125
Weight ( g ) 346 346 990 1080

D 144 2 WAY

D 144 2 WAY
Data Sheet

D 344 3 WAY


Data Sheet
Ref:15PK
Size		 Length Price Ref: Size

Ways

 Bore Press Kv VaH Price
12VDC,24AC/DC 240 /110 AC
3/4" 112mm £25.36* £34.32* 15P132 1/2"BSP(M) 2 8mm 1.6 Bar 2 24 £64.48
1" 112mm £26.46* £35.36* 15P332 1/2"BSP(M)* 3 8mm 0.8 Bar 1.4 24 £76.44
1.5" 165mm £66.15* £72.80* 15P144 1/4"BSP(M)* 2 3mm 1.5 Bar 0.3 14 £54.08
2" 175mm £72.76* £79.04* 15P344 1/4"BSP(M)* 3 3mm 1.5 Bar 0.3 14 £57.00
3" (24v AC ONLY) 225mm £242.53* -

For unidirectional use only. Clean fluids only to be used.

£10.00 Extra for 110v / 240v.

Spare  coils - £16.00 each.

Spare MPM Connector £1.50

N. Open version 1.5" & 2" = £85.00 (326)

Manual Override in design.
½"= Body Length = 68mm.

PPO = Polyphenylene Oxide.

*For unidirectional use only. Clean fluids only to be used.

Power

24v AC = 0.2A(0.4Inr) 12v DC = 0.5A*6.5w
240v AC = 0.35 Inr.      24v DC = 0.3A*6.7w

  Power
240v AC, 110v AC must be earthed

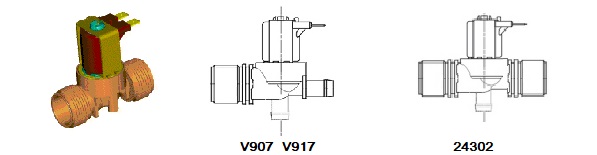

Nylon Washing Machine Solenoid Valve

For water use only.

Pressure 0.2 - 10 Bar.

Servo OEM Design In Line Spade Terminal 6.35 mm. BSP M.

Beige - 240v AC

6 w - 7.7 v A

Yellow - 24v AC

2.2 w - 4.6v A

V907 / V917

Washing Machine Valve V907 / V917

24302
Washing Machine Valve 24302
Data Sheet
Ref: Inlet BSPM            x     Outlet   Price
15PV907 3/4" 13mm SINGLE HOSE Single Solenoid Valve £11.91

15PV917

3/4"

13mm DOUBLE HOSE

Double Solenoid Valve

£13.13
15M24302-03 3/8" 3/8" BSPM Single Solenoid Valve £ 10.80 (O.E.M. QTY Supply Product)
15M24302-05 1/2" 1/2" BSPM Single Solenoid Valve £ 10.80 (O.E.M. QTY Supply Product)
15M24302-07 3/4" 3/4" BSPM Single Solenoid Valve £ 10.80 (O.E.M. QTY Supply Product)



METAL VERSIONS (BRASS & SS) EARTHING - This must be done always with dangerous voltages.

Application

Strainers must be used where there is any grit or dirt into the service. FPM seals & volts DC will reduce pressures.

L180 is now L182  / L280: Water, Air, Oil (subject to seals). 2 / 2 way  Aggressive Chemicals - Don't Use

L316: Clean liquid use. Explosion types on special request.
L178 / L127: Suitable to shut off liquid and gaseous fluids*.

L133 / L377 / L113 / L153: Not suitable for use with dangerous fluids. they are free from CE marking in conformity with article 3 § 3 of the European Directive 97/23/EC (Pressure Equipment Directive)*.

* (verify the compatibility of fluid with material in contact).

MPM Size = ( 122 to 1") ( 182 to 1.1/4" )

Specification
Body              : Brass (SS - see type 316).
Terminations : IP65 MPM (DIN Connector) Free MPM Supplied.
Voltage         : 12v DC, 24v AC,  240v AC,110v AC. Spare Coil £16.00

 Ends              : BSP female threaded.
Seal              : Nitrile Std ( FPM Special ).
Temperature: Std. Buna < 85 C. FPM < 125 C.
Pressure        : Servo 0.3 min - 10.0 max Bars. (bars) (w.n.s)
L 180 (L182)
L 316
L 280
L133 / L121
L377
L113

Sirai L180 / L182

L316

Sirai L280

L133 / L121

L377

L113
Data Sheet L180 L182 Data Sheet 316 Data Sheet L280 L282 Data Sheet L133  L121 Data Sheet L377 Data Sheet L113
 BSP F

Servo

Normally Close

 Servo
N. Close

Servo

Normally Open

 Direct  Acting
N. Close

Dir. Act N.C
Exhausting

LOW

PRESSURE

Pressure Bar

 0.3 - 10 0.5 - 12  0.3 - 10 See Table Below 0 - 8 0 - 3
Body Brass + Buna SS 316+EPDM Brass + Buna Brass + Buna Brass + Buna Brass + Buna
Size  Ref : 15ML180..(L182) Ref : 15ML316.. Ref : 15ML280.. Ref : 15M.. Ref : 15M.. Ref : 15ML113..
1/8" 0 Leng xKv 0 0 TBA L178 £24.20 L377 0
1/4" 0 < mm

0

 £82.51 (D) * 0 £25.48 L121 £31.20 L336B12 0
3/8" £35.83 53 1.7 £122.06 (D) £46.45 £39.52  L133a  0 0
1/2" £38.71 56 2.1 £118.42 £46.48 £42.12 L133b 0 £79.04
3/4" £51.77 74  5 £134.87 £61.19 £57.00 L133c  0 £88.40
1" £77.11 99 11 £157.90 £80.44 £87.00 L133d  0 0
1.25" £130.28 113 15 £226.97 £161.60 0 0 0
1.5" £158.67 140 27 £279.60 £184.86 0 0 0
2" £195.47 145 34 £361.83 £214.98 0 0 0
3" TBA 250 83 TBA TBA 0 0 0

Important

information



( D ) = Direct Acting

*  0 - 10 Bars



Brass Body + BSP

Pressure see Orifice Size:

L178 - 2mm - 0-15 Bar

L121 - 3mm - 0-10 Bar

L133a - 10mm - 0-10 Bar

L133b - 12mm - 0-10 Bar

L133c - 17mm - 0-10 Bar

L133d - 22 mm - 0-10 Bar

DC = 30% Pressure

Brass Body + BSP

Pressure see Orifice Size:

1/8" BSP = 1.6 mm

1/4" BSP = 2.3 mm

Pressure = 8 Bar

For S.A.Cylinds /

Actuators. MPM 122

Brass Body + BSP

Pressure see Orifice

Size:

1/2" BSP = 12 mm

3/4" BSP = 19 mm

Steam Solenoid Valve (L145)

Application: Suitable to shut off liquid and gaseous fluids; particularly suitable to shut off overheated water and steam (verify the compatibility of fluid with materials in contact).

Specification

Body              : Brass.

Pressure        : 0.3 min - 8 max Bars. (bars)
Voltage         : 12v DC, 24v AC,  240v AC,110v AC.

Ends              : BSP female threaded.
Seal              : Reinforced PTFE (Polytetrafluorethylene).
Temperature: -10°C to + 80°C

L145

L145Side View
Data Sheet L145

L145



L145 Internal View

L145

L145End View
Size Ref: Length.. KV Bore Pressure AC Gms Price
3/8" 15M145.. 80 mm 2 10mm 8 Bar V 36 £68.64
1/2" 15M145.. 85 mm 2 10mm 8 Bar V 39 £68.64
3/4" 15M145.. 79 mm 6 16mm 8 Bar V 58 £88.40
1" 15M145.. 105 mm 9 18mm 8 Bar V 131 £118.56

PTFE dia. min press 0.4 bar Max 170°C. (L153 140°C types also) Only AC voltages. 5/2 Way Type 1/4"BSPf All Voltages £48.00.

State pressure always.
