Everyvalve Catalogue Page 22 : Spring Check - Ball Check - Swing Check

CAST IRON SPRING CHECK			FOOT VALVE & STRAINER			BALL CHECK VALVE
						( BSP on request )
Data Sheet			Data Sheet			Data Sheet
REF : 22M973			REF : 22M973SizeFS			REF: 22M970
Uses: Check Valve / Strainer commonly used in industries such as oil and gas, petrochemicals, power plants, and water treatment to prevent backflow						Uses: Ball Check Valve controls the flow of fluid, commonly used in wastewater, fire protection & irrigation applications.
Functions: One-Way Flow: Like other check valves, Strainer: attached to the foot valve filters out debris and particles						Functions: Self-cleaning, Full and smooth bore ensures low head loss
SPECIFICATION: Type 973 PN16 Flgd Spring Check in S.G. Iron Buna seal. Valve & Strainer also complete as shown above Type 970 is Ball Check valve Flgd PN10. SGI Epoxy Coated body. (Blue)
mm Size Bore	REF: 22M973 + FS					REF: 22M970
mm Size Bore	FF mm	£ Each Valve		Wt Kg	£ each complete	Size Bore.	Hgt mm	Wt Kg	£ Each
40	-	-		-	-	40	180	8	£141.00
50	100	£121.00		6	£235.00	50	200	9	£141.00
65	120	£145.00		9	£255.00	65	240	12	£171.00
80	136	£180.00		11	£345.00	80	260	15	£206.00
100	175	£215.00		15	£420.00	100	300	20	£297.00
125	200	£370.00		24	£510.00	125	350	30	£495.00
150	234	£461.00		31	£840.00	150	400	38	£610.00
200	300	£1,050.00		48	£1,255.00	200	500	70	£1,195.00
250	370	£1,475.00		82	£1,730.00	250	700	180	£2,220.00
300	(3" Hose Tail Type = P.O.A)					300	700	180	£3,050.00
350	(4" Hose Tail Type = P.O.A)					350	800	290	£5,070.00
400	(6" Hose Tail Type = P.O.A)					400	900	420	£9,250.00
Type 22M973 - Epoxy Coated with Buna Seal + Galv. Strainer Larger Foot Valves & Strainers per special order to 600mm

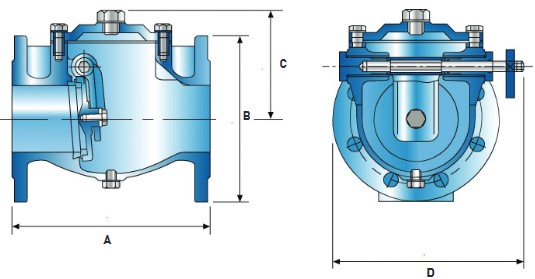

DUCTILE IRON SWING CHECK VALVE

Data Sheets: DN50 - DN300 & DN350 - DN1200
STANDARD REF :22M22					LEVER / WT REF: 22M23
Uses: Swing Check Valve is used to prevent reverse flow, it is suitable for potable water, wastewater and sewage applications. Approvals: WRAS and NSF REG4
Functions: Suitable for both horizontal and vertical installation, Positive hexagonal drive between shaft and hanger
SPECIFICATION: PN16 flanged valve with bronze trim for use up to 16 Bars w.n.s. (50mm to 300mm are to BS5153). Gunmetal trim & Epoxy coated Body. (Blue) temp. up to 70°C. Std Drain Plug fitted ..... * = Non Std.
Size Bore	Length A	Head B Dia	Length C (L/W)	Width D	Weight Kg	£ each Standard	£ each Lever/wt
*50	203	-	-	230	14	-	£205.00
65	216	-	-	-	19	-	£215.00
80	241	T.B.A	T.B.A	235	20	£197.00	£225.00
100	292	T.B.A	T.B.A	268	26	£255.00	£299.00
125	330	-	-	300	-	-	£530.00
150	356	T.B.A	T.B.A	313	50	£515.00	£575.00
200	495	T.B.A	T.B.A	378	96	£955.00	£1,015.00
250	622	T.B.A	T.B.A	493	155	£1,156.00	£1,325.00
300	698	T.B.A	T.B.A	535	215	£1,755.00	£1,925.00
350	640	*(PN16)	-	-	-	TBA	TBA
400	695	*(PN16)	-	-	-	TBA	TBA
450	750	T.B.A	-	-	-	*(PN10)	-
500	820	T.B.A	-	-	-	*	-

Dual Plate Check Valve
Uses: Dual Plate Check Valve used in industries such as oil and gas, petrochemicals, power generation, and water treatment to prevent backflow and protect equipment, Reduced Water Hammer: The quick closure of the valve helps in reducing the risk of water hammer, which can cause significant damage to piping systems
Functions: The primary function of a dual plate check valve is to ensure fluid flows in one direction and to prevent reverse flow. It achieves this with two spring-loaded plates that open when fluid flows in the correct direction and close when the flow reverses.
Ref: 22M960 - Cast Iron Body (GG25) Epoxy Coated. Ref: 22M961 - SS302/4 Spring and Pin. SS304 plates. Wafer fitting between Flanges PN16 to 400mm and PN10 upwards 450mm to 600mm. The Valve must be used with spindle in vertical position on horizontal lines (Valve can be used in vertical lines also.) Seals are EPDM. All Dual Plate valves may seep.
Size Bore	F to F m m	Weight Kg	Data Sheet		Data Sheet
			REF:22M960		REF:22M961
			Outside Dia mm	Cast Iron Price £	SS CF8M Price £
40mm	43	1	94	£70.00	£185.00
50mm	43	2	109	£70.00	£ 197.00
65mm	46	3	129	£75.00	£250.00
80mm	64	4	144	£85.00	£340.00
100mm	64	5	164	£115.00	£398.00
125mm	70	7	194	£170.00	£605.00
150mm	76	8	220	£185.00	£875.00
200mm	89	16	275	£295.00	£1,445.00
250mm	114	27	330	£495.00	£3,025.00
300mm	114	34	380	£595.00	£3,745.00
350mm	127	53	440	£1,010.00	TBA
400mm	140	70	491	£1,290.00	TBA
450mm	152	100	541	£2,710.00	TBA
500mm	152	120	596	£3,175.00	TBA
600mm	178	180	698	£4,265.00	TBA
Larger Sizes Also. \| AIR VALVES SINGLE / DOUBLE TYPE CAN ALSO BE SUPPLIED TO ORDER.
