PLASTIC  FLOW INDICATORS FOR WATER CHEMICALS & AIR

  --------------------------   A   --------------------------   --------------------------   B   --------------------------   --------------------------   C   --------------------------   --------------------------   D   --------------------------   --------------------------   E   --------------------------   --------------------------   F   --------------------------   --------------------------   G   --------------------------   --------------------------   H   --------------------------   --------------------------   I   --------------------------   --------------------------   J   --------------------------   --------------------------   K   --------------------------   --------------------------   L   --------------------------   --------------------------   M   --------------------------   --------------------------   N   --------------------------   --------------------------   O   --------------------------   --------------------------   P   --------------------------   --------------------------   Q   --------------------------   --------------------------   R   --------------------------   --------------------------   S   --------------------------   --------------------------   T   --------------------------   --------------------------   U   --------------------------   --------------------------   W   --------------------------   ------------- Send Enquiry To Everyvalve ------------

Choosing the Right Flow meter

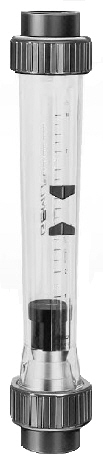

Type 800 Flow Indicator
Variable area accurate flow indicators, are vertically mounted and are easy to use. Wide range of media may be used and calibration is based using CLEAN particle free water. Specials are possible at extra cost.  Dovetail sections on the length of the body permit fixing of adjustable switches for 'high / 'low' positions or readout transmitters.  Special magnetic loaded floats in PP or SS are used with ext. Limit switches & both cost extra.  (SG is 1) Body material standards are for TROGAMID(21) to 60C. For chemicals- POLYSULPHONE(22) TO 80C. Severe chemicals- PVC(03) TO 50C.
Flow Indicator  Ref Size Bore Scale in Litres per Hour for water
 Other Liquids vary figures
Troga
 mid
Polysul
 phone
Float Mat.  Length PVC U  Length MI Unions Weight
gms
805 0.75" 15-160 / 20-250 / 40- 400 / 50- 650
£ 99.00
£113.00 PP 394mm 395mm 400g
805 1" 20-250 / 40- 400 / 60-640 / 100-1000 £ 112.00 £127.00 PP 400mm 402mm 530g
805 1.25" 100-1000 / 200- 2500 / 200- 2500 £ 152.00 £ 168.00 PP 408mm 411mm 880g
805 1.5" 200-1600 / 300-2500 / 300-3200  £ 179.00 £ 213.00 PP 418mm 414mm 1000g
805 2" 200-2500 / 400-4000 / 600-6400 £ 240.00 £ 275.00 PP 433mm 420mm 1140g
822 2" 1000-11000  £ 273.00 £ 308.00 PP 433mm 420mm 1140g
805 2.5" 900-9000 / 1300-13000 £ 417.00 £ 482.00 PVDF 445mm 430mm 3300g
 SS Float types below
807 0.75" 30-260 / 40-400 / 75-650 / 75-1000
£ 99.00
£ 113.00
SS316 400mm 402mm Weight
807 1" 40-400 / 60-640 / 100-1000 / 150-1600 £112.00 £ 127.00 SS316 400mm 402mm TBA
807 1.25" 150-1600 / 200-2500 / 400-4000 £ 152.00 £ 168.00 SS316 408mm 411mm TBA
807 1.5" 200-2500  / 400-4000 / 500-5000 £ 179.00 £ 213.00 SS316 418mm 414mm TBA
807 2" 400-4000 / 600-6400 / 1000-10000 £ 240.00 £ 275.00 SS316 433mm 420mm TBA
807 2.5" 1500-14000 / 2000-20000 £417.00 £ 482.00 SS316 445mm 430mm TBA
840 2.5" 8 - 50 M3/H (By Pass System & Baffle) £ 716.00 - PP316 445mm 430mm TBA
High Switch = 1257 Ref 08P1257 or Low Switch = 1252  + £46.00 each Ref 08P1252. Special calibration = + £40.00 nett Seals are EPDM as standard. NAOH scales also. Ends are PVC cement socket. Imp or Metric. MALLEABLE IRON BSP F ends are extra as are magnetic floats for switches . State requirements. Lengths are for PVC Unions or Malleable Iron union types. Magnetic floats 55% extra approx.



SMALL RANGE Flow Indicator
Flow Indicator  Type 850 Variable area flow indicator as above but for smaller flows. The Indicator is less in length but is to general description above.
Ref Size Bore Scale in Litres per Hour for water
 Other Liquids vary figures
Troga
 mid
Polysul
 phone
Float Mat.  Length PVC U  Length MI Uni Weight
855 3/8" 2-25 / 4-40 / 5-60 / 10-100 / 15-160 £ 68.00 £ 70.00 PP 199mm 203mm  TBA
855 1/2" 5-60 / 10-100 / 15-160 / 20-250 /  30-320 £ 70.00 £ 72.00 PP 208mm 215mm  TBA
855 3/4" 15-160 / 20-250 / 40-400 / 60-640 £ 74.00 £ 76.00 PP 229mm 230mm  TBA
855 1" 20-250 / 40-400 / 60-640 / 100-1000 £ 80.00 £ 85.00 PP 250mm 237mm  TBA
Type 857 Variable area flow indicator as above but for smaller flows.
The Indicator is less in length but is to general description above.
Ref Size Bore Scale in Litres per Hour for water
 Other Liquids vary figures
Troga
 mid
Polysul
 phone
Float Mat.  Length PVC U  Length MI Uni Weight
857 3/8" 4-40 / 5-60 / 10-100 / 15-160 / 20-250 £ 68.00 £ 70.00 SS 199mm 203mm TBA
857 1/2" 10-100 / 15-160 / 20-250 / 40-400 / 50-500 £ 70.00 £ 72.00 SS 208mm 215mm TBA
857 3/4" 20-250 / 40-400 /  60-600 / 100-1000 £ 74.00 £ 76.00 SS 229mm 230mm TBA
857 1" 40-400 / 60-640 / 100-1000 / 150-1600 £ 80.00 £ 85.00 SS 250mm 237mm TBA

Type 875   DN10-20 High Switch = 1256 Low Switch = 1257 DN 25 use switches as 805
Air Flow Indicator Type 875
Ref Size Bore

Scale in Litres per hour **AIR**
Based on 1 Bar Absolute at 20 Deg C

Troga mid  Polysul phone Float Mat. Length PVC U Length
MI Uni
Weight
875 3/8" 20-360 / 25-550 / 50-900 / 150-1500 / 200-2400
£ 73.00
£ 75.00
PP 199mm 203mm TBA
875 1/2" 100-900 / 150-1500 / 200-2400 / 400-3800 / 500-4800
£ 74.00
£ 76.00
PP 208mm 215mm TBA
875 3/4" 200-2500 / 400-3750 / 500-5500 / 1000-10000
£ 80.00
£ 82.00
PP 229mm 230mm TBA
875 1" 400-4000 / 500-6000 / 1000-10000 / 1000-16000
£ 86.00
£ 91.00
PP 250mm 237mm TBA
875 All above Normally in L/Hour <> 1 m3= 1,000 Litres (220 Gallons) ALL AT AIR I BAR



TURBINE ROTAMETER

Rotameter

Electronic Readout Device BSP/Flanged in SS316 or Nylon body. Gives Flow Rate + Volume + Batch on Liquid on large LCD battery Op. For clean liquids only. Magnetic SS impellor used in both types. Air versions available. Display for reading flow rates. Display can indicate: total sprayed (with zero setting) up to 99.999.999 units.  Partial volume with different measurements : litres, imperial gallons, US. gallons.  Impulse setting for adequate calibration of liquid with different temperature and viscosities.  Impulse setting for 1/2" to 6" flowmeters, with sinusoidal wave sensor. The tolerance are less then ± 1%.
SS VERSIONSS Version Flow Meter Ref
SS
Size Flow Ranges & Accuracy For SS Dimension / mm Price
SS
Weight
Grams
Ref
Nylon
Dimension
/ mm
Price
Nylon
Weight
Grams
08PLTBSS05 1/2"BSP 3. - 38 L/M  BSP M Linearity +/-0.5% 107x45.8  £792.45 1000 08PELC05 100x30x40 £658.80 90
08PLTBSS07 3/4"BSP 7 - 76 L/M Ditto 109x50.8  £792.45 1100 08PELC07 100x30x40  £658.80 90
08PLTBSS10 1"BSP 10 - 190 L/M BSP M Linearity +/-0.3% 114x55.9  £820.80 1300 08PELC10 120x30x40  £658.80 160
NYLON VERSION
Nylon Version Pony Flow
08PLTBSS15 1.5"BSP 38 - 380 L/M Ditto 135x71.1  £820.80 2100 08PELC15 130x60x60 £729.00 180
08PLTBSS20 2" BSP 76 - 780 L/M Ditto 160x81.2  £1,512.00 3100 08PELC20 170x70x70 £803.25 300
08PLFLS/S30 3"Flange 227-2270 L/M Flgd PN16 Linearity +/-0.3% TBA TBA - 08PELC30 250x120x120 £1,108.35 2030
08PLFLS/S40 4"Flange 454-4540 L/M Ditto TBA  TBA - - 260x140x140 - 2090
08PLFLS/S50 6"Flange 908-9080 L/M Ditto TBA  TBA - - - - -



VISUAL INDICATOR
VISUAL INDICATOR ONLY Type GPRF
VISUAL INDICATOR Ref Size
Bore
Bodies in GLG2 Gunmetal & Glasses are Soda Spindles in SS316 Gaskets =   Klingersil 4400 Clear
GP
Clear
GPB
Rotor
GR
Flap
GF
Long
08PGPRF - Min Flow 1/2"&3/4" 3L/M 1" 5L/M Weight Water Steam Water Water -
- 1/2" Max temp = 100C (GR) Others 200C 1000g
£95.00
£117.00
£106.00
£117.00
85mm
- 3/4" Max pressure 16 Bar except GPB = 8Bar 950g
£95.00
£117.00
£106.00
£117.00
85mm
- 1"  BSP Parallel ends Female 1250g
£106.00
£124.00
£117.00
£128.00
95mm

Electromagnet Full Unrestricted Bore Flow Meters with Hard Rubber lining, Epoxy External Coating and Electronic Read out -display Units from 2"(50mm) to 8"(200mm) Flanged PN16- Best Prices available.
