TWO WAY BALL VALVES- PVC / ABS / PPFG -TECHNICAL  & DIMENSION DATA
  --------------------------   A   --------------------------   --------------------------   B   --------------------------   --------------------------   C   --------------------------   --------------------------   D   --------------------------   --------------------------   E   --------------------------   --------------------------   F   --------------------------   --------------------------   G   --------------------------   --------------------------   H   --------------------------   --------------------------   I   --------------------------   --------------------------   J   --------------------------   --------------------------   K   --------------------------   --------------------------   L   --------------------------   --------------------------   M   --------------------------   --------------------------   N   --------------------------   --------------------------   O   --------------------------   --------------------------   P   --------------------------   --------------------------   Q   --------------------------   --------------------------   R   --------------------------   --------------------------   S   --------------------------   --------------------------   T   --------------------------   --------------------------   U   --------------------------   --------------------------   W   --------------------------   ------------- Send Enquiry To Everyvalve ------------

PVC & ABS - Locked Nut Double Union Ball Valves  ON/OFF 90 Deg. Handle Operation (Three way types on Page 10 to 4")
PVC / ABS Double Union Ball Valve
Size
Bore
H
L
PN
Wght
 PVC ABS
PVC/ ABS Double Union Ball Valve Ins mm mm mm Bar Gms Ref Ref
3/8
10
48
90
10
180
 02P22A03 02P22AB03
1/2
15
48
94
10
170
 02P22A05 02P22AB05
3/4
20
54
112
10
265
 02P22A07 02P22A0B7
1
25
62
121
10
370
 02P22A10 02P22AB10
PVC/ ABS Double Union Ball Valve Line Drawing
1.1/4
32
75
139
10
545
 02P22A12 02P22AB12
1.1/2
40
85
155
10
885
 02P22A15 02P22AB15
2
50
101
189
10
1440
 02P22A20 02P22AB20
2.1/2
65
123
204
6
2300
 02P22A25 02P22AB25
3
80
138
232
6
3655
 02P22A30 02P22AB30
4
100
160
272
6
6000
 02P22A40 02P22AB40

* Manual uPVC / ABS Double Union Ball Valve Colour Grey. / Light  Grey - ABS only available in Plain Imperial socketed. Prices next page.

* End Connections std. are plain (22A) Imperial or Metric sizes (22AM) or BSPf.(23A)  Flanged versions available by request.

 * Flanged versions 6”,# 8” and #10” are available.(#Special)

 *PTFE Seated with EPDM seals as std Ref : 02P22A or FPM Ref : 02p22AB as per request at extra cost

* ¼” NPTf Single piece PVC valves with EPDM seals, also stocked.

*Industrial Versions can have electric or pneumatic actuators fitted.

Everyvalve recommends full suitability first check of the service.
6” PVC Flanged Ball Valve Electric Actuated Version
6” PVC Flanged Ball Valve Electric Actuated Version

PVC Double Union Ball Valve Economy
Size
Bore
H
L
PN
Wght
 PVC Plain PVC BSP
Sizes : 3/8" -  4" Manual uPVC Double Union Ball Valve
Ins
mm
 mm mm Bar Gms Ref Ref
3/8
10
52
84
10
170
 02P61003 02P61603
1/2
15
52
84
10
170
 02P61005 02P61605
3/4
20
62
108
10
290
 02P61007 02P61607
1
25
70
124
10
410
 02P61010 02P61010
1.1/4
32
84
142
10
630
 02P61012 02P61012
1.1/2
40
104
167
10
1010
 02P61015 02P61015
2
50
120
198
10
1590
 02P61020 02P61020
2.1/2
65
148
232
6
2620
 02P61025 02P61025
3
80
179
269
6
4650
 02P61030 02P61030
4
100
228
359
6
8800
 02P61040 02P61040
Compression Ball Valve

Manual uPVC Double Union Ball Valve Colour Grey.
End Connections STD. are Plain Imperial (..610) or metric sizes (..610m)  or BSPf (..616).  PTFE Seated with EPDM seals as std, Compression Version 02P616CO . Check suitability.
Prices on next page
Sizes : 20mm - 63mmCompression Ball Valve

PVC & PP - Single Union Ball Valves - 6" PVC Full Bore also available (Flanged/socketed) ABS is 20% lighter than PVC

PVC Single Union Ball Valve

Size
Bore
H
L
PN
Wght
 PVC Plain PVC BSP
Sizes : 3/8" - 4"PVC Single Union Ball Valve
Ins
mm
 mm mm Bar gms Ref Ref
3/8 10 48 14 10 105 02P30203 02P30103
1/2 15 48 16 10 105 02P30205 02P30105
3/4 20 54 19 10 155 02P30207 02P30107
1 25 62 22 10 230 02P30210 02P30110
1.1/4 32 75 26 10 350 02P30212 02P30112
1.1/2* 40 87 31 10 520 02P30215 02P30115
2 50 101 38 10 875 02P30220 02P30120
2.1/2 65 123 43 6 2430 02P30225 02P30125
3 80 138 51 6 2440 02P30230 02P30130
4 100 160 61 6 4100 02P30240 02P30140
Manual uPVC Single Union Ball Valve Colour Grey. Prices on next page
 End Connections STD. are Plain Imperial (..302) or metric sizes (..302m)  or BSPf (..301).
PTFE Seated with EPDM seals as std .

Everyvalve recommends full  suitability first check of the service.



Compact PVC Ball Valve BSPF
Size
Bore
H
L
PN
Weight
 BSP
Size : 1/2" To 2"Compact PVC Ball Valve BSPf
Ins
mm
mm
mm
Bar
gms
 PVC
1/2
15
47
78
10
108
 02P3095AA05
3/4
20
52
90
10
158
 02P3095AA07
1
25
65
106
10
250
 02P3095AA10
1.1/4
32
70
121
10
316
 02P3095AA12
1.1/2
40
74
130
6
508
 02P3095AA15
2
50
80
148
6
756
 02P3095AA20

*  Manual Valves are manufactured in Grey uPVC. Prices next page.

* End Connections are BSPf.  Simple economy easy to use compact valve.

*  EPDM Seals are standard (Spares are not available).

Everyvalve recommends full suitability first check of the service.



Flange Reinforced PP Ball Valves
Size
Din
 PN H L Weight Ref
Reinforced Small Size PP Ball Valve1/2" To 2" SizeReinforced Small Size PP Ball Valve
Ins
mm
Bar
 Height Length Grams -
1/2"
 15
10
 75 130 500 02P2014..05
3/4"
 20
10
 75 150 600 02P2014..07
1"
25
10
 95 160 1050 02P2014..10
1.1/4"
32
10
 99 200 1700 02P2014..12
1.1/2"
40
10
 106 200 1950 02P2014..15
2"
50
10
 111 230 2450 02P2014..20
Flange Large PP Reinforced Ball Valve
* Valves Manufactured in Black Glass Reinforced PP with PTFE Seats.
* PVDF Body Special at extra cost For 1/2" - 2" Size Flange Version
* EPDM Seals are Standard ( FPM Special at extra cost ) - Spares Are Available.
* Flanged Codes For Valves ".."  HH = BS10 Table E,  FF = PN16,  GG = ANSI 150.
* All Valves Have A Metal Insert rein. In Drive Spindle.
* Actuation Versions Suitable For Electric Pneumatic Actuators.
PP Reinforced Ball Valve3" & 4" Size 6" PP Flg PP Ball Valve6" Size
Heavy Duty Construction
Size Din PN H L Weight Ref
3" 80 10 168 310 6200 02P1003..30
4" 100 10 188 350 7000 02P1003..40
6" 150 10 235 480 15000 02P2008..60

Flange Reinforced PP Ball Valves
Size
Din
 PN H L Weight Ref

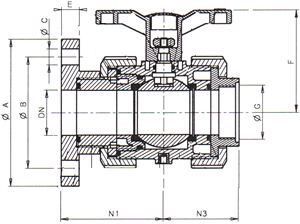

Double Union Threaded PP Ball Valve1/2" To 3/4" Size Double Union Threaded PP Ball Valve1" To 2" Size
Ins
mm
Bar
 Height Length Grams -
1/2"
 15
10
 75 125 300 02P1003..05
3/4"
 20
10
 75 131 300 02P1003..07
1"
25
10
 78 136 500 02P1003..10
1.1/4"
32
10
 83 148 800 02P1003..12
1.1/2"
40
10
 89 164 1200 02P1003..15
2"
50
10
 95 172 1500 02P1003.20

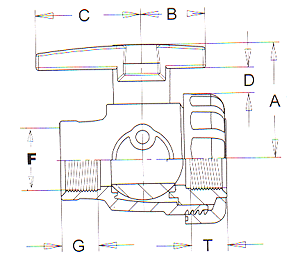

PP Single Union Reinforced BSP
* Valves Manufactured in Black Glass Reinforced PP with PTFE Seats.
* PVDF Body Special at extra cost For 1/2" - 2" BSP Version.
* EPDM Seals are Standard ( FPM Special at extra cost ) - Spares Are Available.
* Codes For Valves ".."  HH = BS10 Table E,  FF = PN16,  GG = ANSI 150.
* All Valves Have A Metal Insert rein. In Drive Spindle.
* Actuation Versions Suitable For Electric Pneumatic Actuators.
* Larger Sizes of BSP Versions Available
Single Union Type
3/8" & 2" Size		 Sandwich * Type
2.1/2" & 4" Size

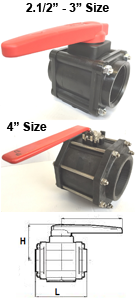

PP SINGLE UNION BALL VALVE TYPE 620  Sandwich Type 620 PP Ball Valve
Single Union Reinforced BSP PP
Size Din PN H L Weight G Ref
3/8" 10 10 48 74 100 02P620B03
1/2" 15 10 60 88 100 02P620B05
3/4" 20 10 60 88 150 02P620B07
1" 25 10 73 99 250 02P620B10
1.1/4" 32 10 80 109 300 02P620B12
1.1/2" 40 10 87 126 520 02P620B15
2" 50 10 110 149 870 02P620B20
2.1/2"* 65 10 123 168 1000 02P620B25
3"* 80 10 125 174 1060 02P620B30
4"* 100 7 125 200 4340 02P620B40
* Single Union Valves Has BSPF Thread Each Side.  Fixing Means Of Valves Are On One Sid.  All Dims. in mm.
* Valves Manufactured in Black Glass Reinforced PP with PTFE Seats. Tee Handle.
* EPDM Seals are Standard ( FPM Special at extra cost ).
* Sandwich Valves Have Tie Bolts Retaining the BSP Threaded End Connections & no Union Nut. Lever Handle.

Materials as Stated. Seats in PTFE WNS. Temp. Range:- PVC = 0 to +50C. ABC = -20 to +85 C. PP = -10 to +90 C. Seals are in EPDM as Standard or Viton Specially. Threads are Parallel, Flanges can be mounted per Standard specified as a special extra. Correct choice of valve with Pressure and Chemicals is essential so as to avoid failures. Use only correct seals & materials. Weights given are in PVC WNS.ABC is* 0.78 of PVC. PP is * 0.65 of PVC. PVDF is * 1.28 of PVC. Nylon is *.84 of PVC
