| 1. | DESCRIPTION | 2. |
|
|
12" KNIFE GATE VALVE CAST IRON C/W AIR ACTUATOR NITRILE SEALS S/S DISC.
10" KNIFE GATE VALVE WITH NITRILE SEALS PN10 SS VERSION PNEUMATIC KIT & GUARD.
|
|
|
Taken on 28/10/2006 |
|
Taken on 16/11/2006 |
| 3. | DESCRIPTION | 4. |

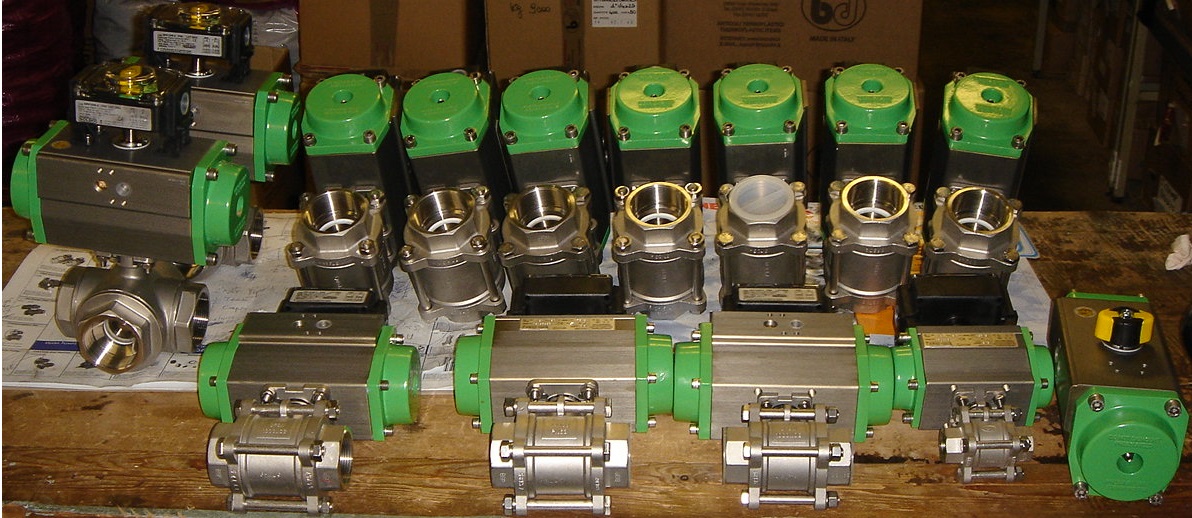

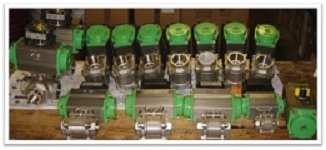

SS BALL VALVE ACTUATED
|
||
Taken on 23/3/2009 |
 |
Taken on 23/3/2009 |
| 9. | DESCRIPTION | 10. |
|
|

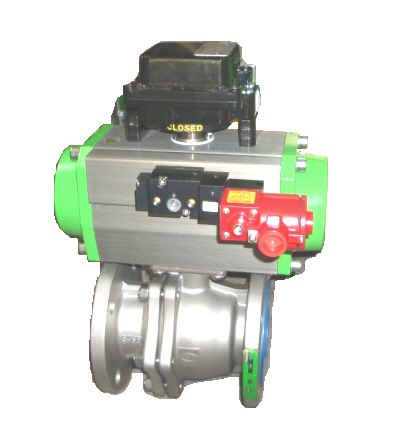

80mm S/S ANSI 150 BALL VALVE A.S.F.S FULL BORE.
C/W PNEU. N CLOSE ACT.+ S.BOX+ SOL VALVE 24V DC ZONE1 EXD.
|
|
|
Taken on 5/12/2006 |
|
Taken on 5/12/2006 |
| 11. | DESCRIPTION | 12. |
|
|

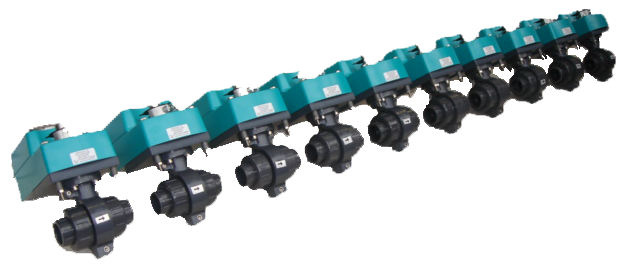

2" PLAIN PVC DOUBLE UNION BALL VALVE WITH PTFE SEATS & EPDM SEALS + IP67 ELECTRIC ACTUATOR 110V AC + MANUAL OVERRIDE + VISUAL INDICATE+ SEPARATE LIMIT SWITCH CIRCUIT.
2" 316 SS 3 WAY L PORT FLANGED ANSI 150 BALL VALVE FITTED WITH PNEUMATIC N/C ACTUATOR
|
|
|
Taken on 18/9/2007 |
|
Taken on 17/10/2007 |
| 13. | DESCRIPTION | 14. |
|
|
Two x 3" BSP BRASS BALL VALVES WITH COMMON PNEUMATIC ACTUATOR N/CLOSE & N/OPEN MODES + SPEED CONTROL MODULE. AIR PRESSURE 5 BAR.
80MM ANTI STAT SS ANSI 150 3 WAY B. VALVE C/W PNEU N/C ACT. + S. BOX + SOL VALVE 24V DC
|
|
|
Taken on 12/12/2006 |
|
Taken on 15/12/2006 |
| 15. | DESCRIPTION | 16. |
|
|

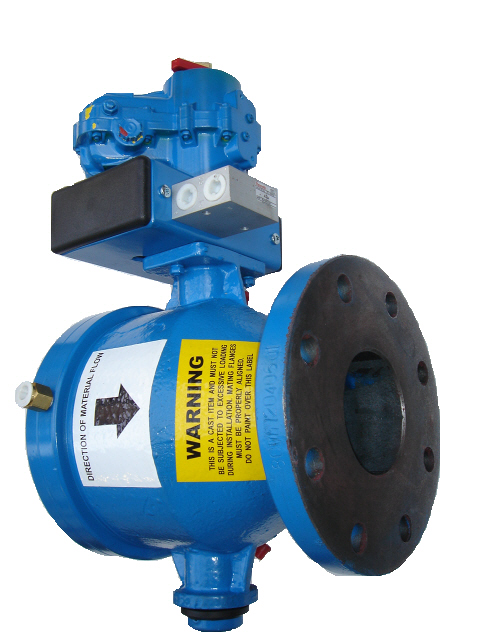

3" PN16 DOME VALVE FOR PNEUMATIC CONTROL.
1.5" CS x SS CLASS 1500 BALL VALVE NPT THREADED FITTED WITH PNEUMATIC ACTUATOR
|
|
|
Taken on 19/12/2006 |
|
Taken on 15/5/2007 |
| 17. | DESCRIPTION | 18. |
|
|
2" BSP threaded BS 21:1985 Stainless Steel Safety Relief Valve - side outlet discharge with leak proof dome top |
|
|
Taken on 5/11/2006 |
|
Taken on |
| 19. | DESCRIPTION | 20. |
|
|
3/4"
SPRING RETURN MANUAL "Dead
Man Handle"
LEVER
OPERATE SS BALL VALVE 3 Piece A.S.F.S.
|
|
|
Taken on 8/11/2006 |
|
Taken on 8/12/2006 |
| 21. | DESCRIPTION | 22. |
|
|
DN 50 2" BSP BRONZE 3 WAY COCK REF L1214 WITH WRENCH.
2 1/2" PN16 FLG GUNMETAL FIRE HYDRANT BIB HOSE VALVE + PP PLUG & CHAIN  |
|
|
Taken on 5/12/2006 |
|
Taken on 3/4/2008 |
| 23. | DESCRIPTION | 24. |
|
|
BOOSTER PUMP IN STAINLESS STEEL.

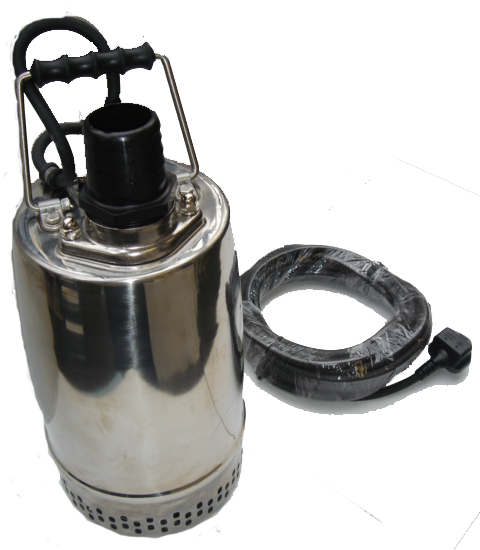

2" RS SS SUBMERSIBLE WASTE PUMP 230V, 350/16 LM/HM
|
 Enlarge |
|
Taken on 7/06/2006 |
.. |
Taken on 26/03/2009 |
| 25. | DESCRIPTION | 26. |
|

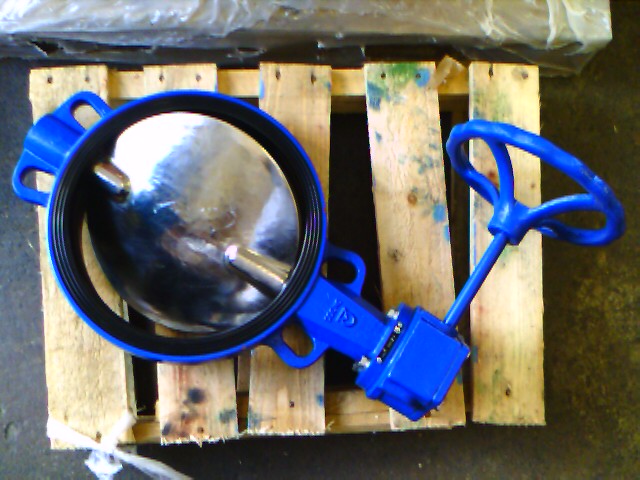

12" GEAR OPERATED BUTTERFLY CAST IRON / SS / EPDM.
200MM PN16
DUCTILE IRON WAFER PATTERN BUTTERFLY VALVE PTFE COATED & LEVER OPERATED |
 Enlarge |
|
| Taken on 25/09/06 |
Taken on 23/03/09 |
| 27. | DESCRIPTION |
|
|
1' BSP FEMALE ENDS LTB S/S TURBINE ROTAMETER.
|
|
Taken on 5/12/2006 |
| 29. | DESCRIPTION | 30. |
|
|
2 Way PP BALL VALVE FLANGED
3 Way PP BALL VALVE FLANGED
|
 Enlarge |
|
Taken on 5/12/2006 |
- |
Taken on 5/12/2006 |
| 31. | DESCRIPTION | 32. |
|
2" L180 SOLENOID VALVE BRASS N/C PTFE/ EPDM Range from 1/8" to 3"
|
||
| Taken on |
Taken on 21/05/2008 |
| 33. | DESCRIPTION |
|
|

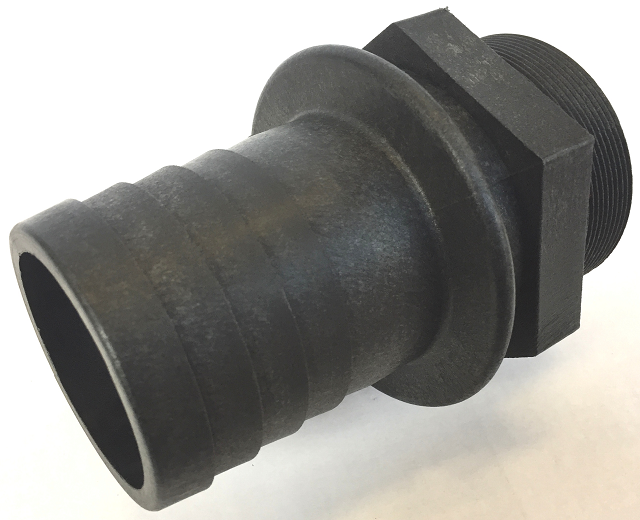

HOSE ADAPTOR, HOSE MENDER, HOSE TEE, HOSE Y, EVE Tap. Range from 6mm to 100mm.
|
|
Taken on 2/11/2006 |
- |
|
35. |
DESCRIPTION |
36. |
 Enlarge |
315 mm PEHD SLIDE GATE VALVE. Range from 50mm to 500mm.
315MM PEHD SPIGOTED SLIDE GATE VALVE WITH HANDWHEEL |
 Enlarge |
|
Taken on 16/11/2006 |
|
Taken on 26/08/09 |
|
37. |
DESCRIPTION |
38. |
 Enlarge |

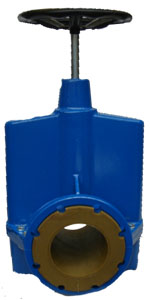

6" MANUAL PN16 FLANGED PINCH VALVEs
|
- |
|
Taken on 25/09/20069 |
|
