MULTI-PORT PLASTIC BALL VALVES (3 / 4 Way)
PVC - ABS - PP


Saleseveryvalve.com

Designed for diverting liquid flows along alternative routes/ports Chemicals and water applications are typical uses subject to material of valve etc. Compatibility. All valves are the Ball Plug Type and have PTFE seats & EP seals WNS

Type (1) = PVC True Union valves with bottom  entry 'L' Port socket end. Lockable. standard.

Type (2) = PVC True Union valves with horizontal entry 'T' Port socket end. Lockable. configuration.

Type (3) = PP 2 part union valves with bottom entry 'L' Port connection standard. (Any End).

Type (4) = PP Single Union valves with bottom entry 'L' Port OEM economy type. (BSP Female)



Type (1) PVC                 Type (2) PVCBALL VALVE T AND L PORT VALVE

SOCKET ENDS

Type (3) PP



Ball Valve Bottom Entry

FUSION / BSP ENDS

Type (4) PP

BALL VALVE L PORT BOTTOM ENTRY

BSP ENDS Data Sheet
' L Port ' 'T Port' (HORI) ' L Port ' 'L Port' ( ECONOMY )

Pressure

 10 BAR 10 BAR

10 BAR

 8 BAR

Size

 Ref : 10P60 Ref :10P65 Ref :10P20 Ref :10P21

1/4"

-

-

-

£ 16.80
3/8"

£ 60.00

£ 60.00

-

-
1/2"

£ 60.00

£ 60.00

£ 45.64

£ 12.80
3/4"

£ 61.00

£ 61.00

£ 47.86

£ 13.69
1"

£ 61.00

£ 61.00

£ 55.19

£ 16.25
1.25"

£ 94.00

£ 94.00

£ 65.67

£ 26.71
1.5"

£ 94.00

£ 94.00

£ 86.82

£ 35.62
2"

£ 117.00

£ 117.00

£ 101.29

£ 52.31
3"

£ 481.14

£ 615.86

£ 533.13

 -
4"

£ 1013.16

£ 1103.42

£ 990.57

 -



Electric Op:> Page 19/19a                        On Application 2" 'T' Port GFPP 3 way valve= £210.76  Ref 10P2220T.
Pneumatic Op:>Page 19/19d                     On Application 2" 'L' Port GFPP 4 way valve=£298.00  Ref 10P2221L.
1/4"T = NPT Threaded (Special Compact Style Valve).
Electric & Pneumatic available above ---> plus modulating 0 to 10 volt control if required per special requirement.

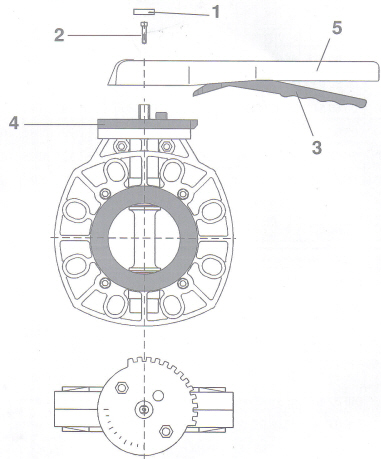

PVC BUTTERFLY VALVE TO 250mm (PP to 24")

This light valve give efficient operation combined with economic cost & corrosion resistance. A slim disc gives good flow qualities +

the valve can also be fitted with sockets for ease of cementing straight into pipe with minimum fuss. EPDM seals are standard

(FPM is extra). Spring acting lever has limit travel positioning notches. Gearboxes for all sizes possible. Do not over torque/tighten

bolts when mounting. Options for Electric/Pneumatic Actuation also) PVC Spindle and metal insert.

Size

 Material

 Dimension (SEE BELOW FOR REFERENCE)

Ref:10P163

Ref:10P163M

Special
A B C E F H L Nm Bar Kg> Wafer Mounted + FPM
2"  50mm PVC 193 165 110 28 18*4 48 197 25 10 2 £ 94.95 £ 123.18 +£50
2.5" 65mm PVC 193 165 110 28

Wafer

 48 197 25 10 2 £ 94.95 £ 136.01 +£50
3" 80mm PVC 227 130 126 30 53 260 55 10 3 £ 110.35 £ 169.37 +£58
4" 100mm PVC 271 150 157 30 60 260 100 6 4 £ 121.89 £ 191.18 +£89
5" 125mm PVC 297 250 172 30 66 260 120 6 4 £ 139.86 £ 241.22 +£123
6" 150mm PVC 327 285 185 30 72 260 140 4 6 £ 170.65 £ 327.18 +£204
8" 200mm PVC 400 340 230 30 73 390 340 4 9 £ 254.05 £ 441.37 +£284
10" 250mm PVC 450 320 250 35 106 GBx 450 3 16 £ 488.84 £ 964.85 +£174
12" 300mm PP 522 367 270 60 20*16 126 GBx 800 3 33 £ 992.25* - TBA
14" 350mm PP 560 420 300 60 20*16 126 GBx 800 3 38 £ 3,008.25*  - TBA
16" 400mm PP 665 604 363 60 20*20 169 GBx 1600 3 69 £ 5,563.95* - TBA
18" 450mm PP 675 634 365 70 20*20 181 GBx 1600 2 90 TBA - TBA
20" 500mm PP 769 728 405 70 20*20 191 GBx 2000 2 90 TBA - TBA
24" 600mm PP 875 850 450 70 20*20 209 GBx 2400 1   TBA - TBA

Can be supplied complete with Stub Flanges Backing Rings & Bolts assembled (i.e. mounted)

All dimensions are in mm. Valve is based on NP10 flanges but has elongated holes for BS or ANSI types.

* = PP types.                                   G = Gear Boxed.                               PP types is changed construction.

Above are full bodied wafer types and can offer cheaper basic wafer types to 8" on call.

WAFER TYPE

MOUNTED TYPE



PLEASE NOTE : Prices subject to change without prior notice.
